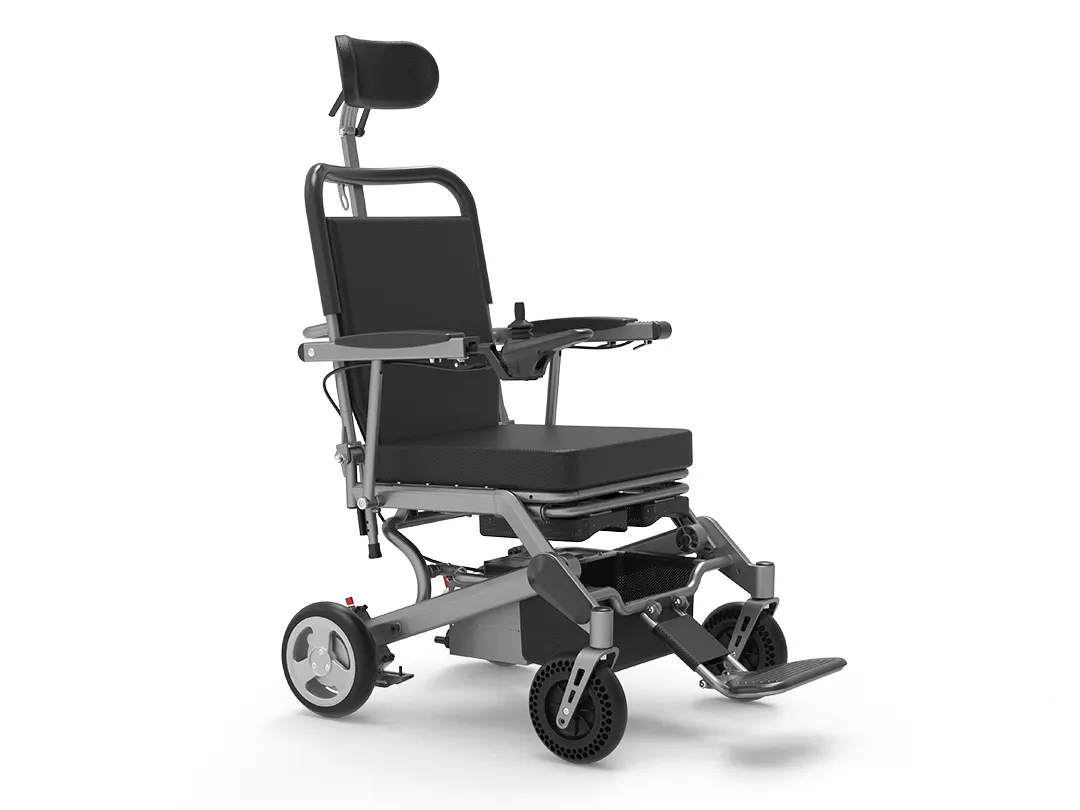

9000N

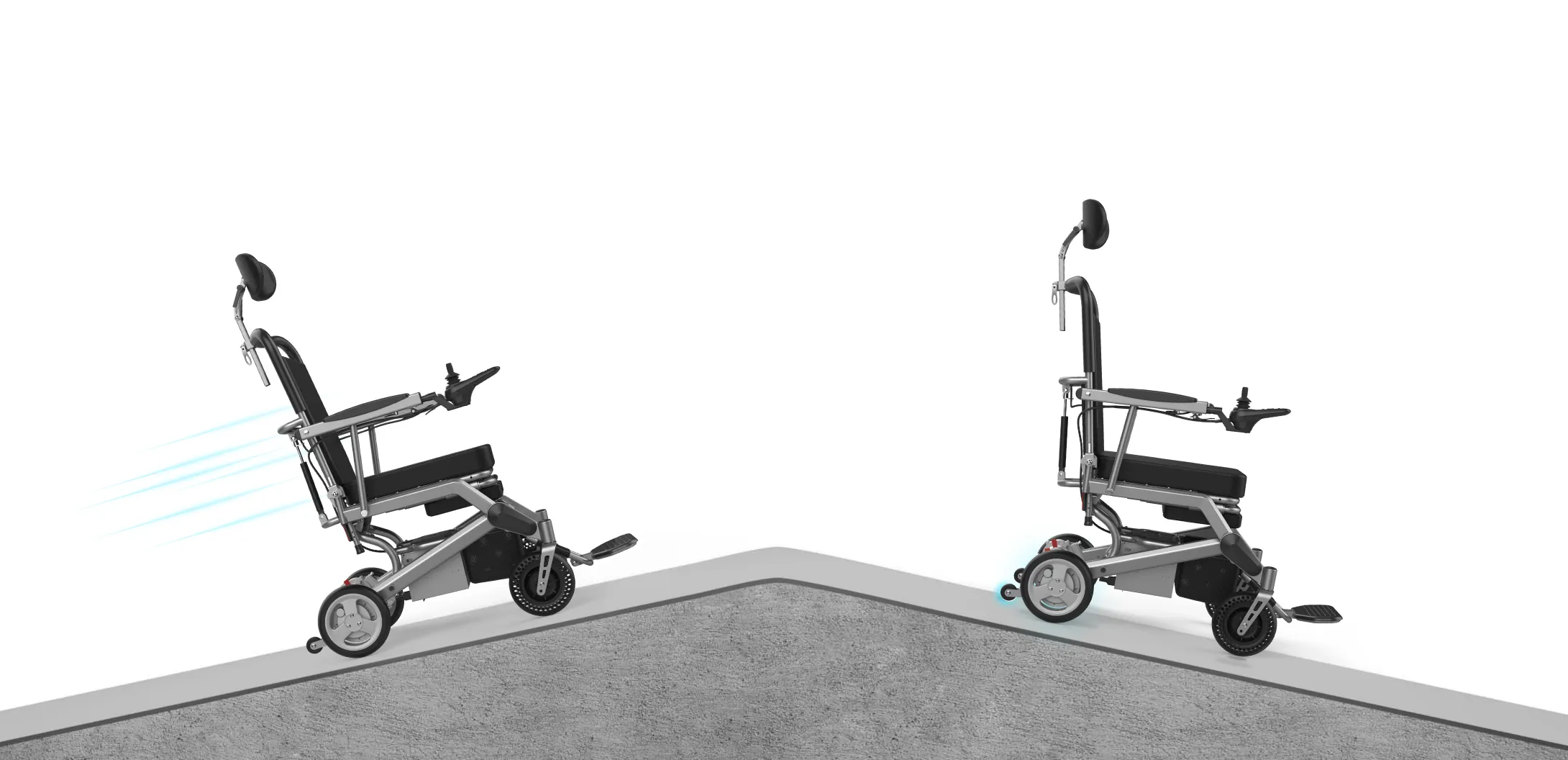

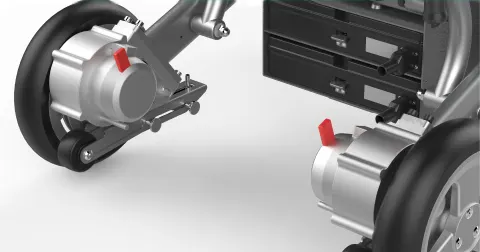

Safely upgraded intelligent parking brake system

Brake when you let go, efficient and smooth braking, and smooth driving on a 12° slope;
Stop when you let go, no fear of slopes, no slipping up and down slopes, and unimpeded travel.

  • 12

    Smooth ride on ramps

  • 2

    Anti-roll wheel

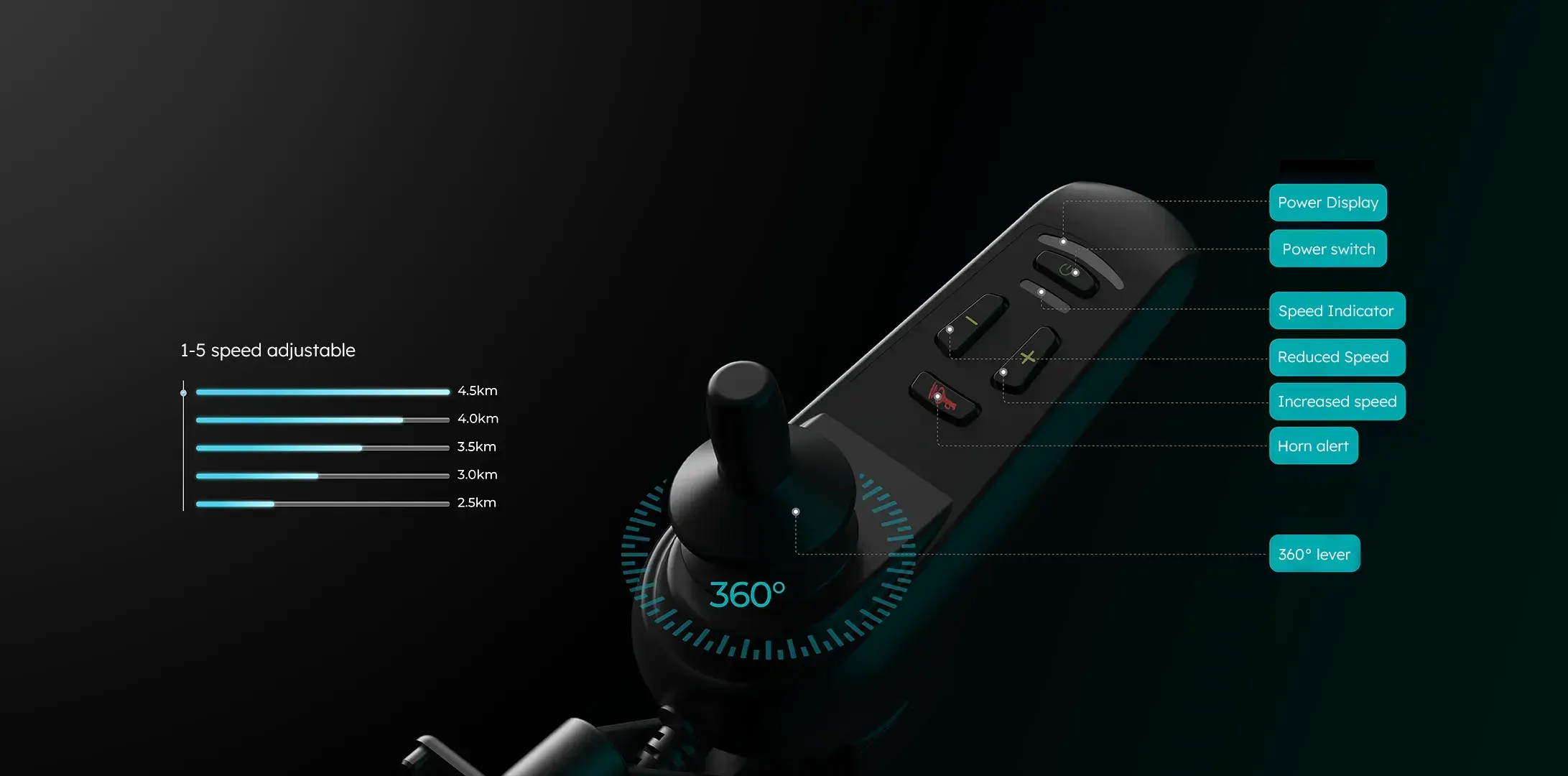

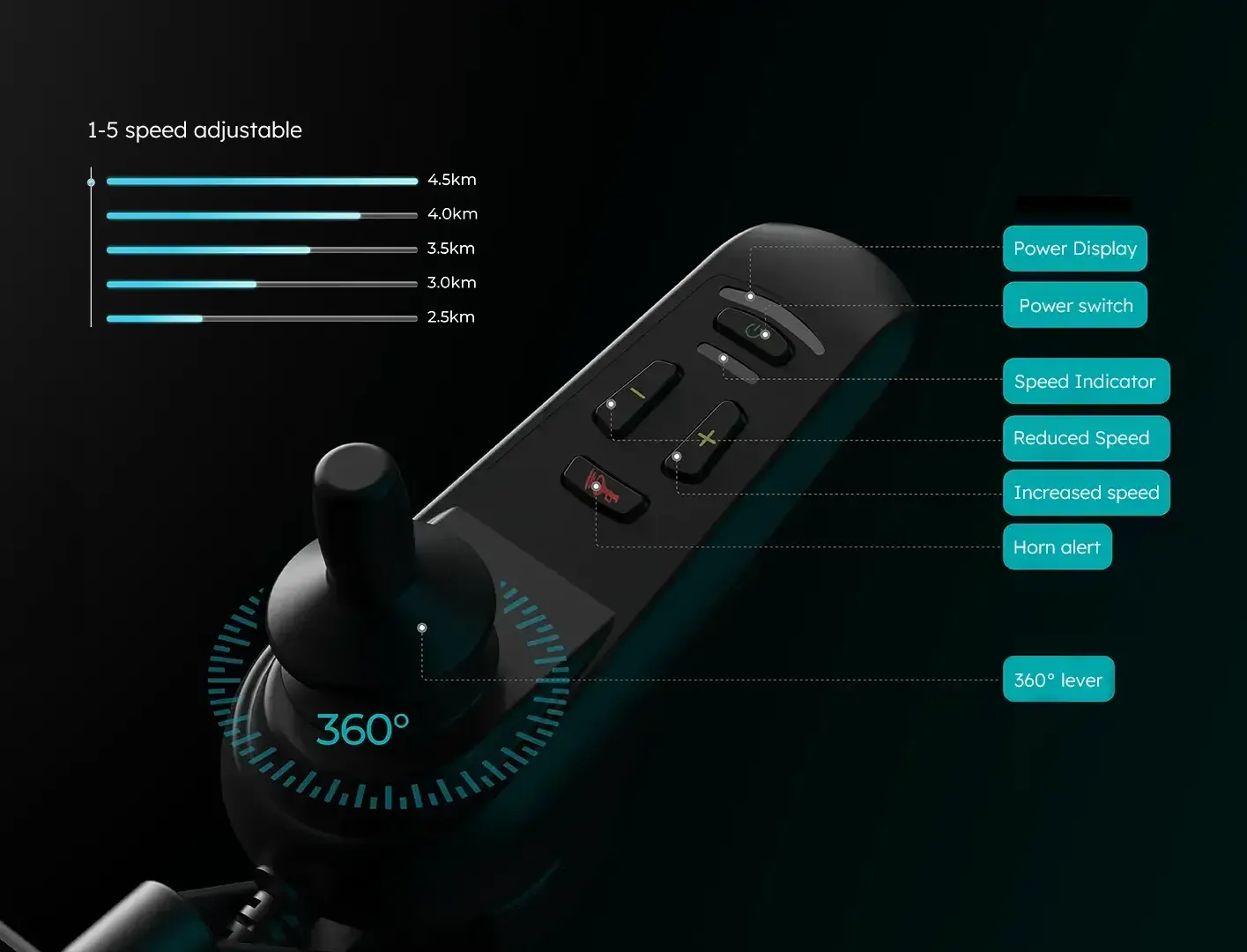

360°smart joystick

Flexible start, one-handed operation, 360° sensitive steering, easy to use

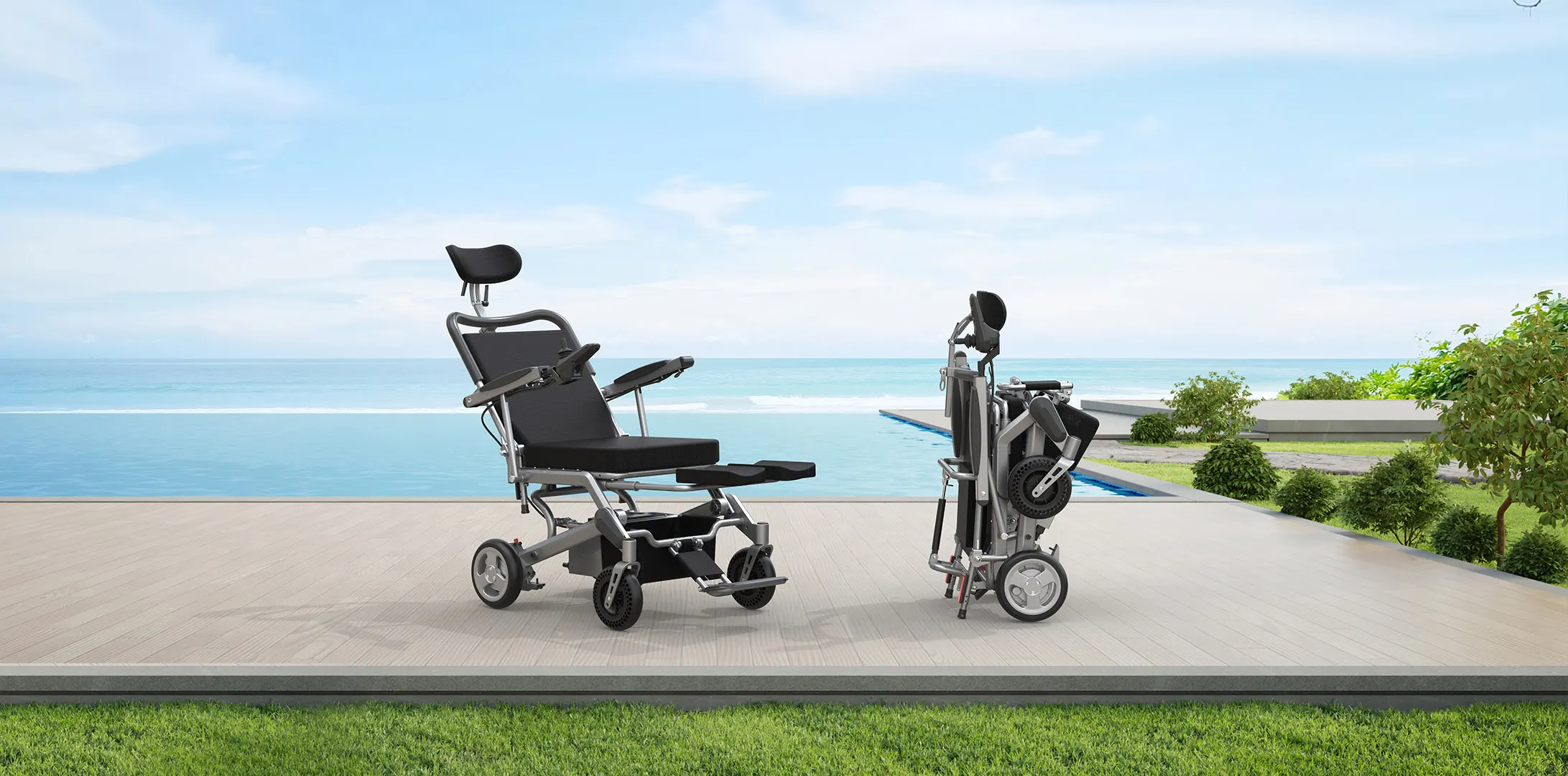

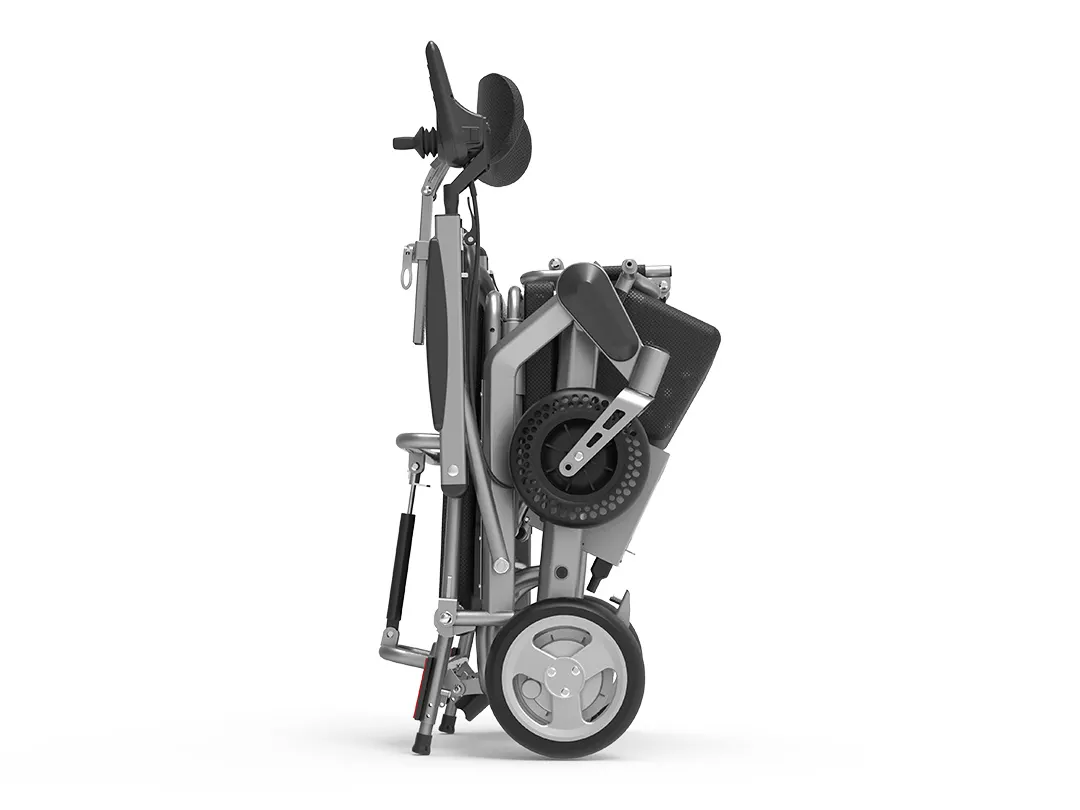

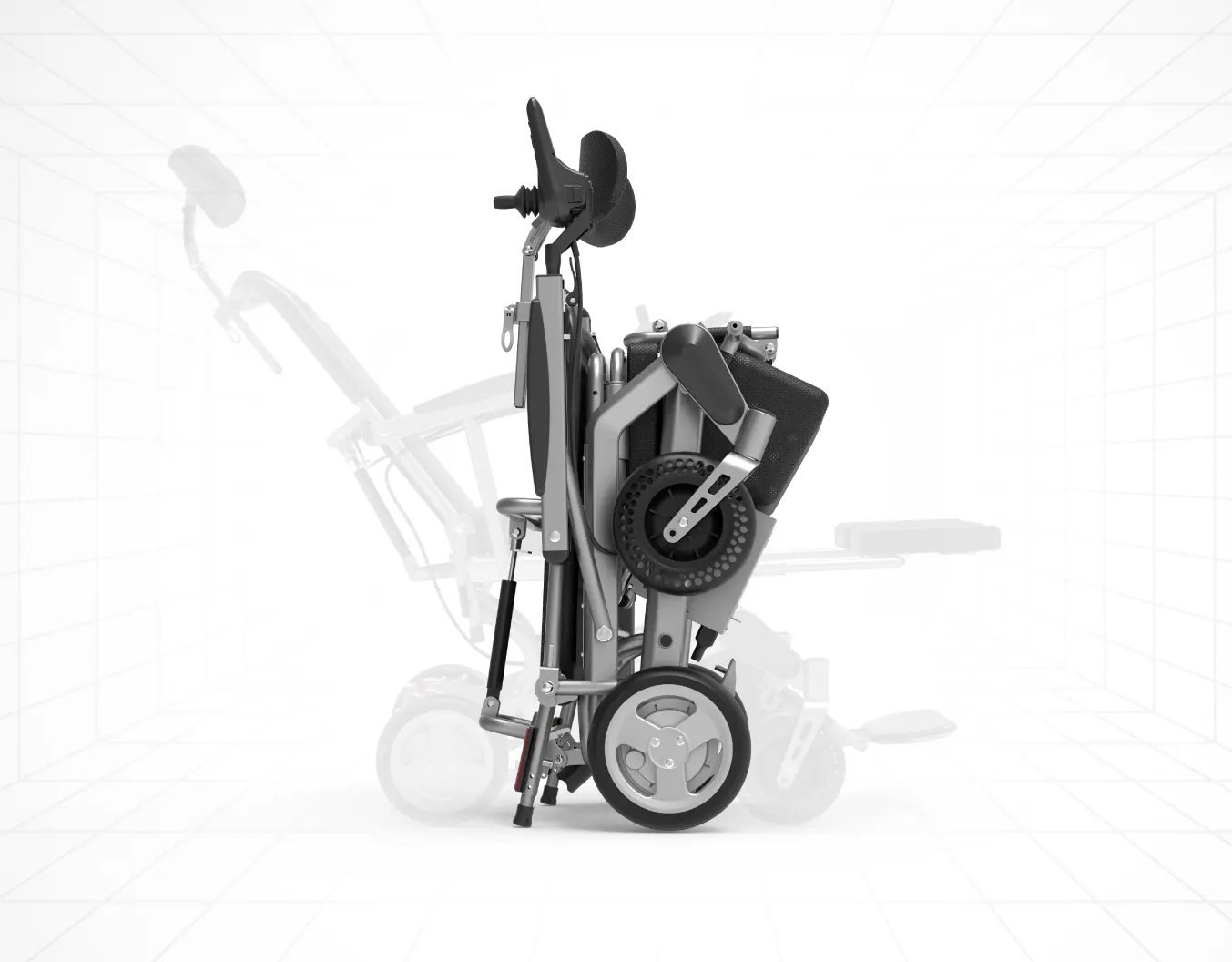

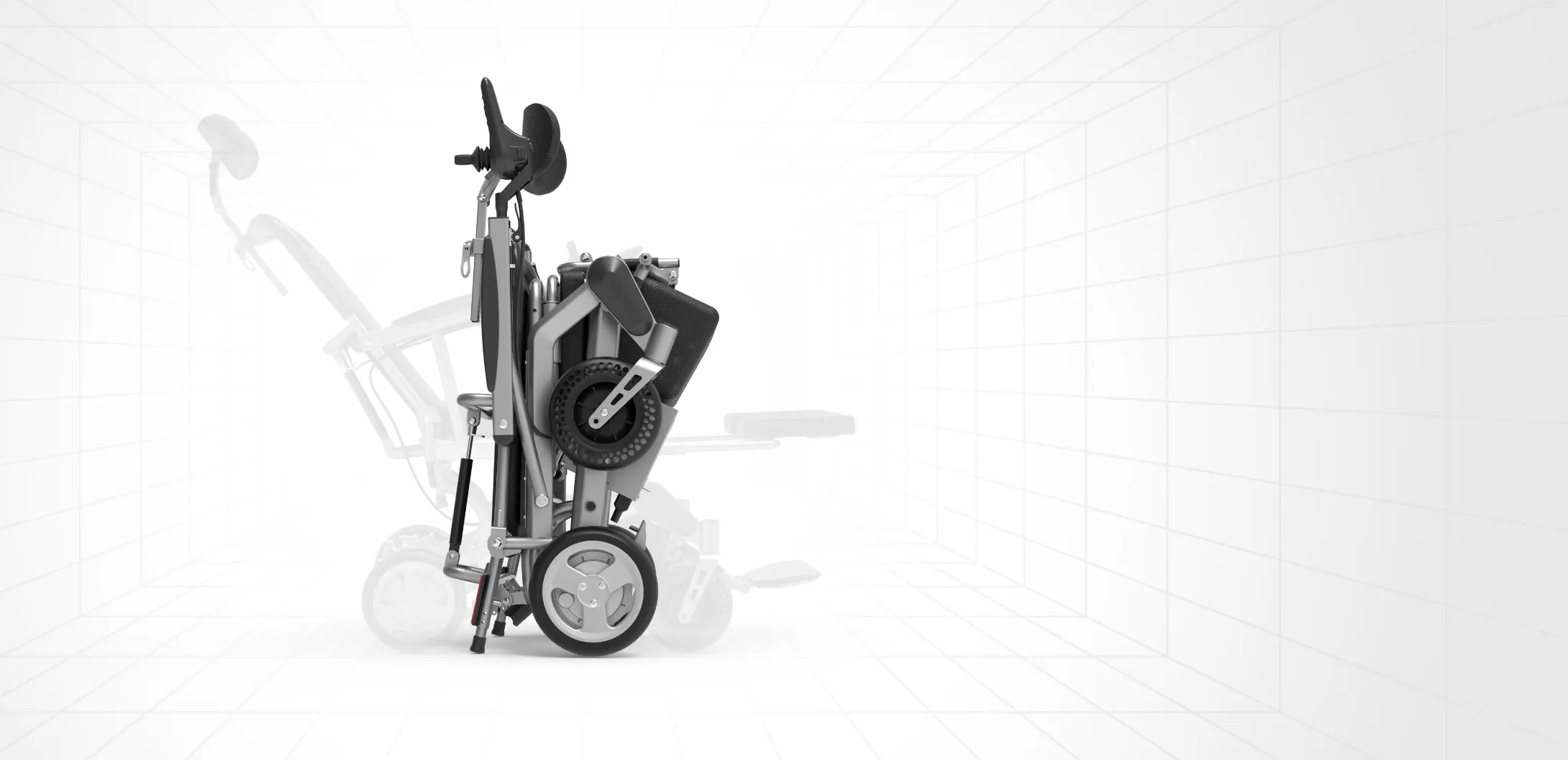

3 seconds to fold and carry

Small and easy to place in the trunk of the car, more convenient to carry when traveling

  • Can be put in the trunk
  • Can board the plane

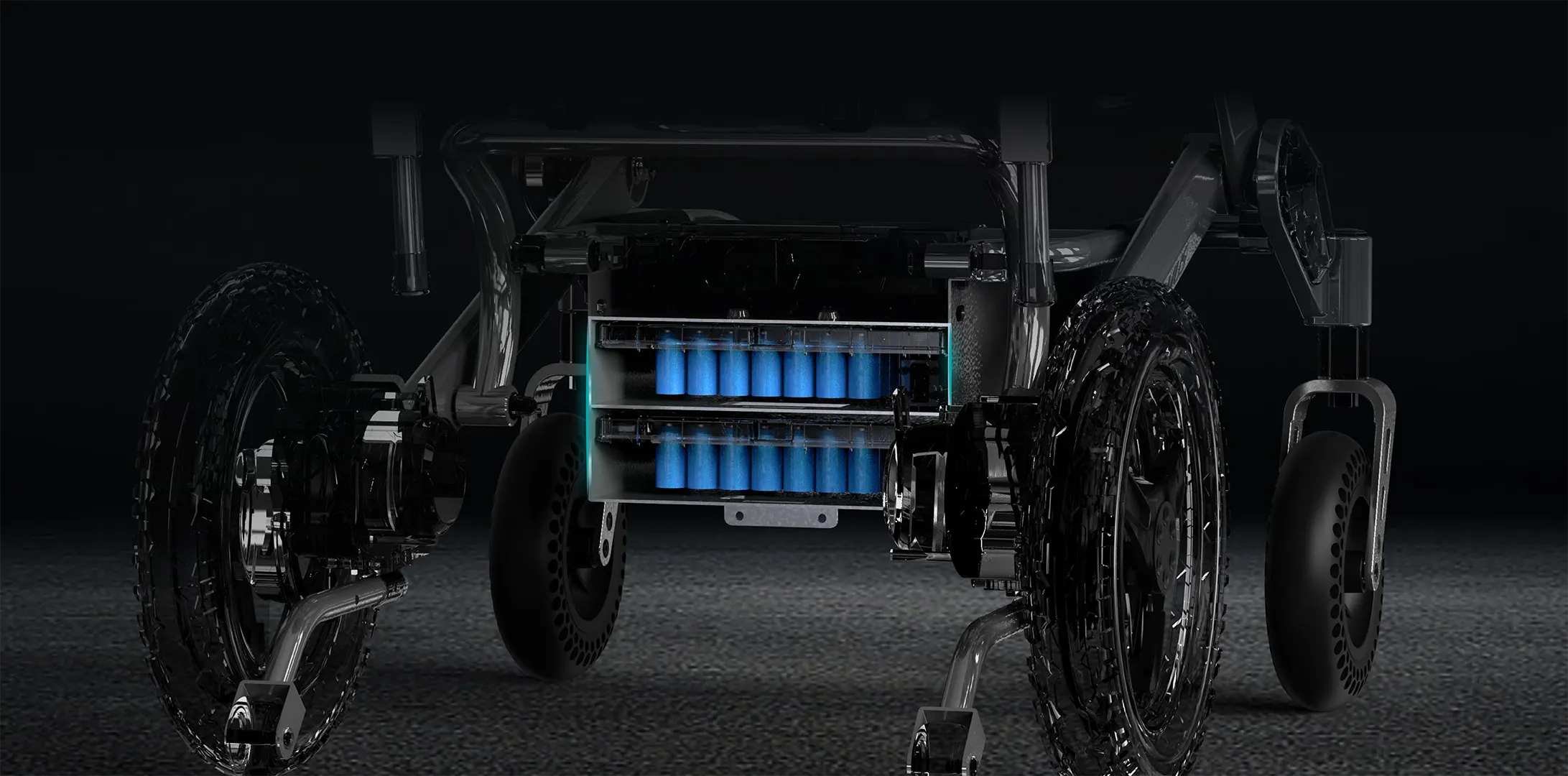

Dual battery pack (optional)

Dual battery packs, switch the backup battery in one step to increase the cruising range.

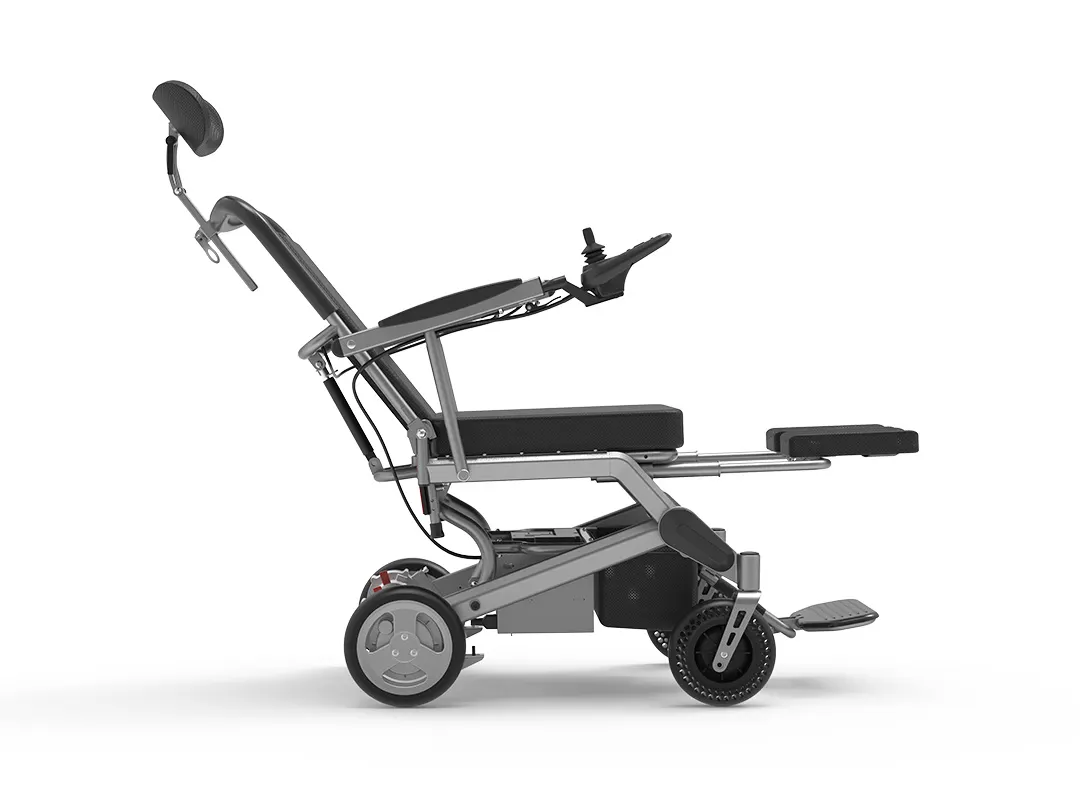

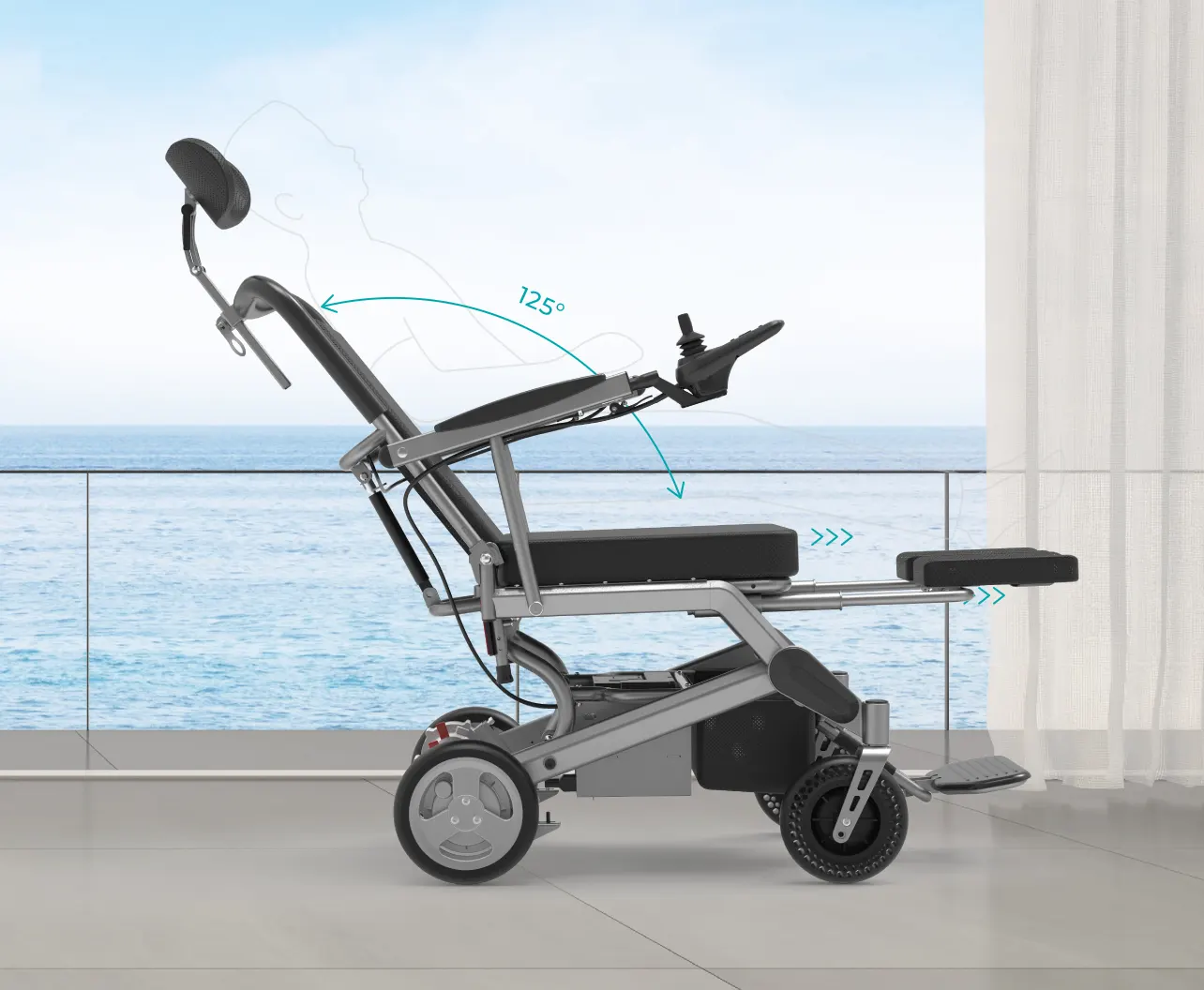

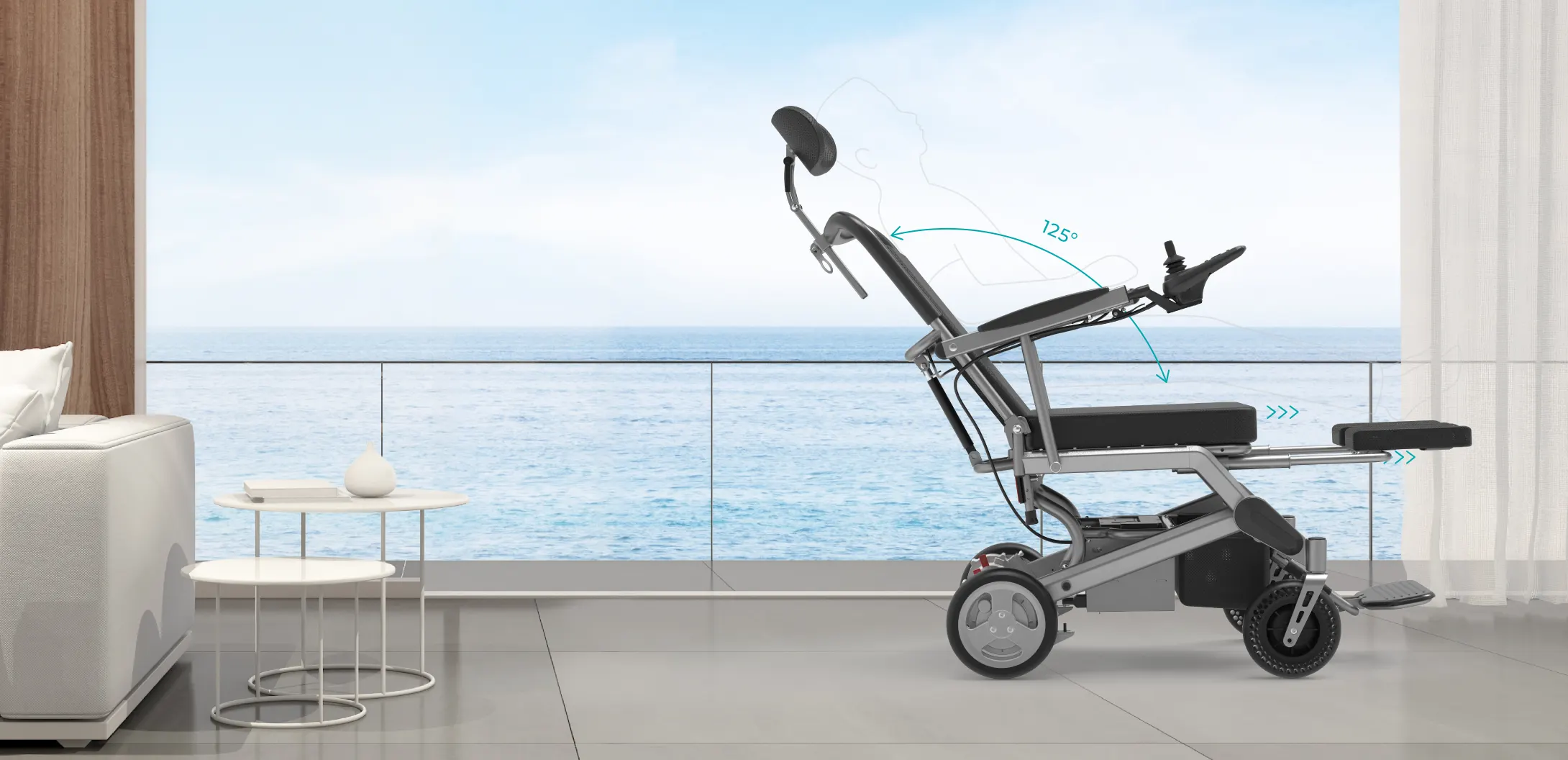

backrest angle adjustment

One-button adjustment of the backrest angle to meet the user's needs for comfortable sitting posture experience;
Lightweight materials and higher skeleton development standards are used to achieve longer service life and higher durability and reliability.

· 98°~125°Adjusted to meet your most comfortable angle.

· Retractable leg pads to stretch your sedentary legs.

»»»
More detailed

  • 01

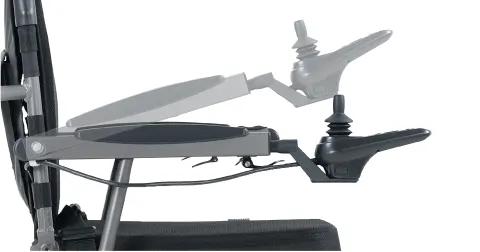

    Switch armrest
    Free up and down

  • 03
    Dual mode
    Manual and electric,
    Easy conversion
  • 02

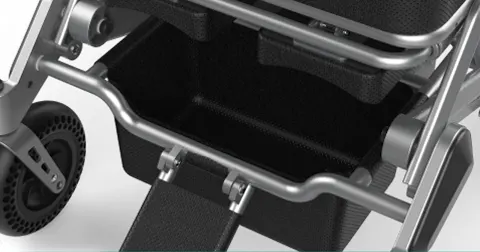

    Front storage pocket
    Large capacity,
    Meet the needs of life
  • 04

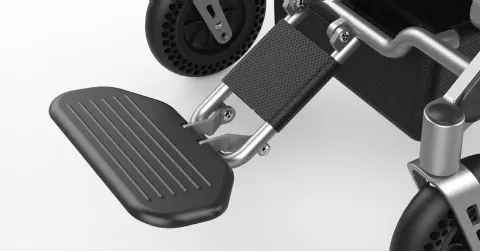

    Foldable pedals
    Packable design,
    Save space
Dimension
( with anti-tip wheels & rear basket）		L1025*W620*H1060mm/L40.3*W24.4*H41.7 inchesFolded Dimension
（with anti-tip wheels & rear basket）		L788*W620*H 465mm/L31*W24.4*H18.3 inches
Seat Cushion SizeL450*W450*H70mm/L17.7*W17.7*H2.8 inchesSeat to the floor550mm/21.7 inches
Loading Capacity100kg(220lbs)Total weight (excluding battery 2kg, headrest and other accessories)26Kg（57.3lbs）
Range15-20km( 9.3-12.4miles ) *Max.Speed≤4.5km ⁄ h ( 2.8Mph )
Braking Distantce ( flat )≤100cm ( 39.4 inches )Turn Radius≤90cm ⁄ 35 inches
Front Wheels8 inchesObstacle Clearance2.5cm ⁄ 1inches
Rear Wheels12 inchesDitch-crossing capability10cm ⁄ 4inches
Static stability≥9°Dynamic stability ≥3°
Motor specificationDC 24V / 180W×2Maximum slope12°
Controller output current 34A  max.Number of batteries2 groups (standard 1 group)
USB charging portSupport a variety of fast charge protocols, maximum output power 24W (4V/3.6A, 5V/3.4A, 9V/2.5A, 12V/2A, etc.))Battery Single group/Lithium-ion  24V11AH
Charger inputAC 100-240V , 50 / 60HzCharger output currentDC24V , 3A max.
Waterproof level IPX3Rated voltage and frequencyCharger voltage: AC 220V 50Hz; internal power supply voltage: DC24V
Flame-retardant level V0Maximum security slope braking≥160cm /63 inches （3°）
*Different Road conditions and driving methods will affect the range
